Page 24 - Bell and Baldwin's HD-4

Published by Ronald Caplan on 1978/12/1 (282 reads)

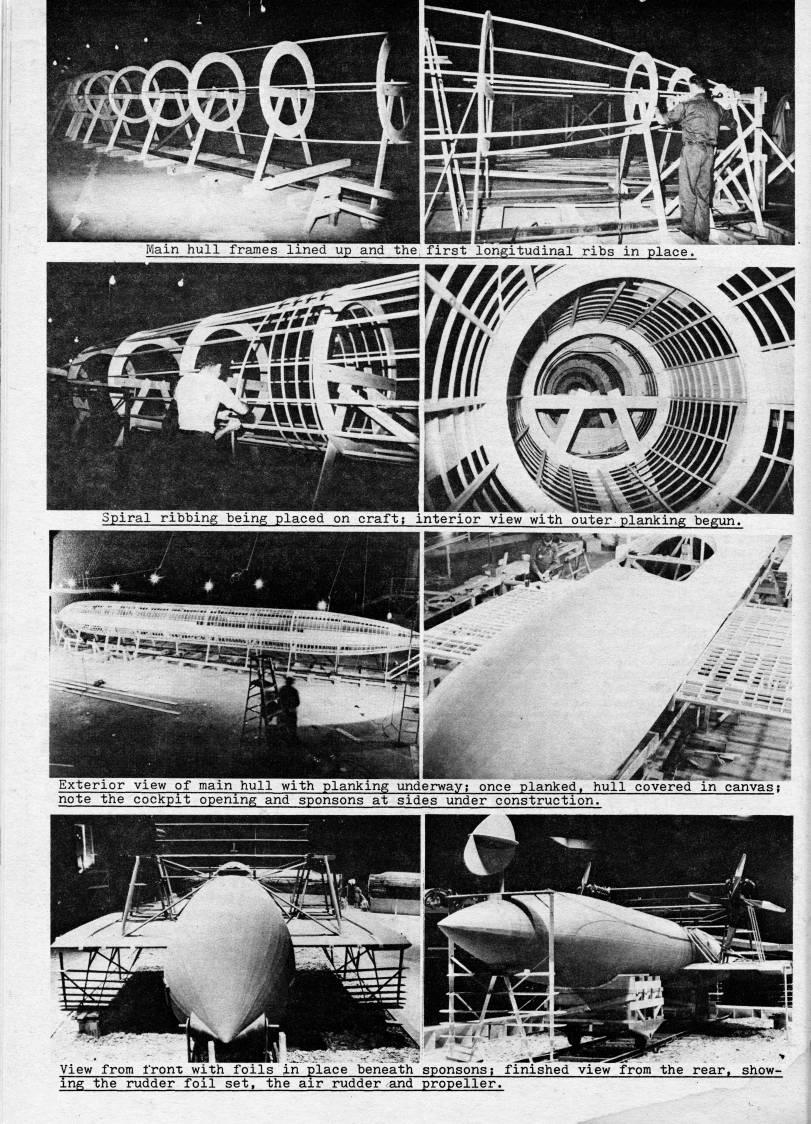

Main hull frames lined up and the first lorif,.,. .'., ribs in placed Jlfi m 'TS5'' V'A W' Spiral ribbing being placed on craft; interior view with outer planking begun. 'i Exterior view of main hull with planking underway; once planked, hull covered in canvas; note the cockpit opening and sponsons at sides under construction. View from front with foils in place beneath sponsons; finished view from the rear, show? ing the rudder foil set, the air rudder and propeller.
